My Journey to Revolutionize PC Airflow, Inspired by My Audi RS3
I never imagined that tweaking my high-performance Audi RS3 would lead me to rethink how we cool PCs, but after installing a massive carbon fiber air intake that transformed its engine efficiency, I couldn't ignore the chaotic airflow in my own computer setup.
This discovery set me on a quest to create smooth, dedicated air paths for my PC components, promising cooler temperatures and better performance without the usual mess of standard case fans.
TL;DR
I upgraded my Audi RS3 with a large air intake for smoother airflow, sparking ideas to fix the disorganized air movement in my PC build.
Using Fusion 360, I modeled custom ducts to direct cool air precisely to the CPU and GPU, minimizing restrictions for optimal flow.
After 3D printing and installing the ducts, I tested the setup and saw dramatic temperature drops, especially for the GPU.
Further tweaks flipped case fans for better CPU cooling, revealing how targeted airflow beats brute force methods in PCs.
This experiment uncovered the potential of custom solutions, though limited to specific hardware, hinting at broader improvements for future builds.
I started with my Audi RS3, which isn't stock anymore—I've made several modifications, but the standout is the massive carbon fiber air intake from Eventuri.
It has the largest diameter tubing and the smoothest paths, reducing restrictions to the turbo five-cylinder engine, and the performance boost was insane, making me wonder why PCs don't have something similar.
In a typical mid-tower PC like my NZXT H5, air just flows haphazardly with intake fans at the front and exhaust at the top, but it's mostly brute force rather than directed paths.
I decided to draw inspiration from the Eventuri intake and design custom airflow paths for my build, aiming for large, smooth ducts to channel air directly to the CPU and GPU with minimal obstruction.
I'm familiar with 3D modeling in Fusion 360, so I began by accurately modeling the PC case, including the exterior and interior, using basic shapes and precise measurements to ensure everything aligned perfectly.
I included the massive CPU cooler and the RTX 4090 FE, focusing on correct dimensions without overdetailing, since this setup features high-power hardware like the 24-core Intel 13900K and the 4090, along with specific fans.
Creating the actual fan ducts was new territory for me, so I learned from tutorials on engine manifolds, using Fusion 360's Loft function to bridge faces and Shell to hollow them out.

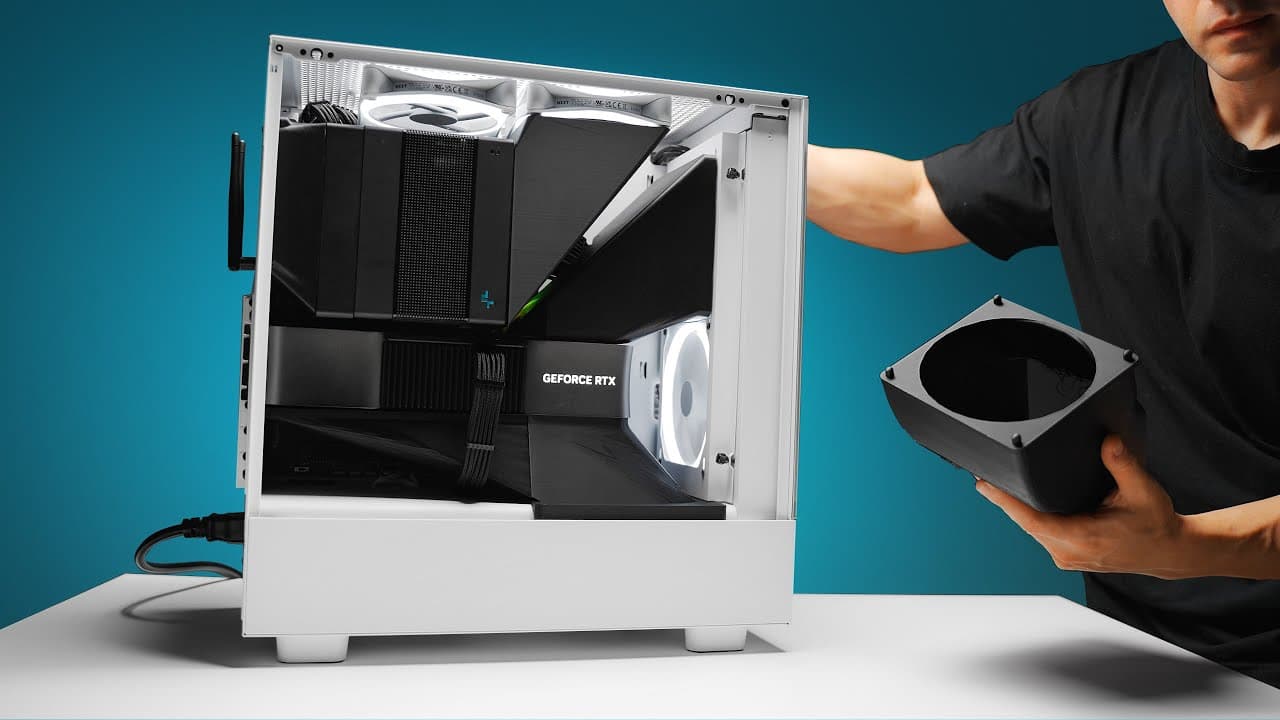

For the CPU, I designed an intake duct from the top fan to funnel cool air into the heatsink and an exhaust duct to channel hot air out, ensuring the cooler always accesses fresh air.
The GPU ducts were more challenging; the intake needed to be massive to direct air from the bottom fan to the 4090, so I split it into two pieces for 3D printing and used double-sided tape for mounting.
Printing these on my Bambu Lab X1 Carbon took hours—the CPU intake alone over six and a half—but everything turned out spot on, with perfect fitment and no failed prints.

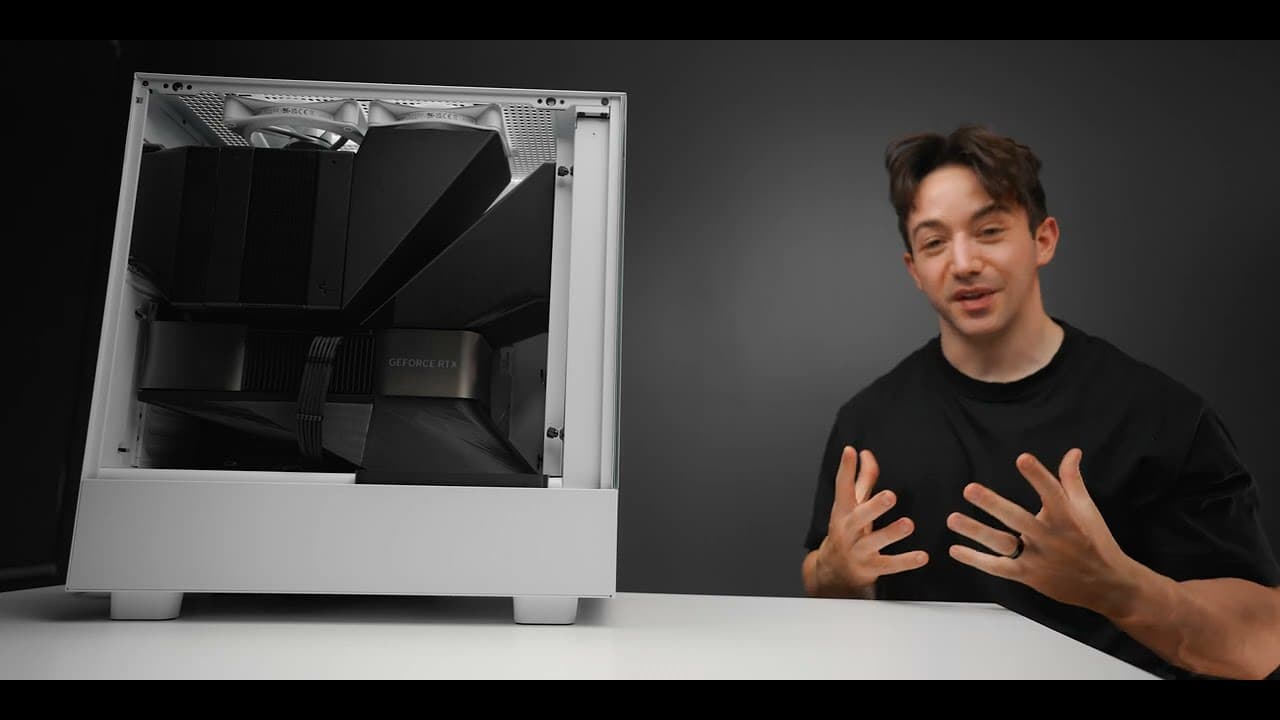

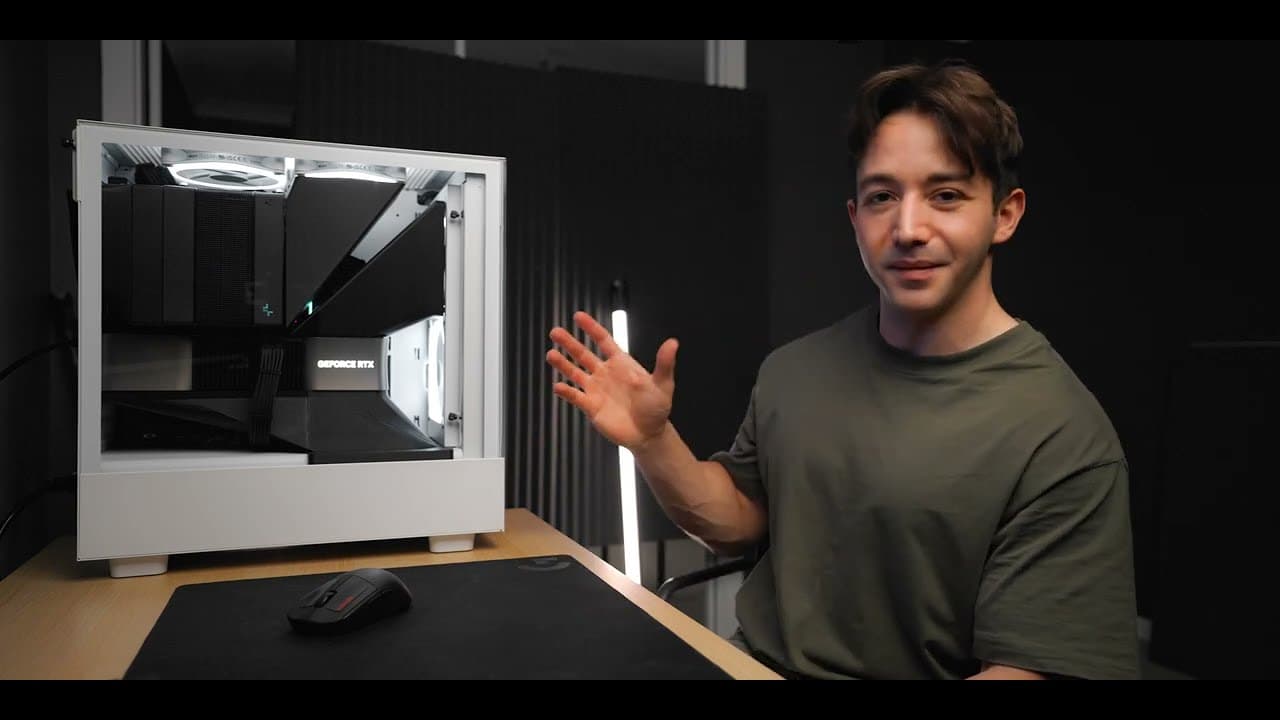

Once installed, the build looked unique, with no empty space inside, and I could feel the increased air pressure compared to before.
Testing in Cyberpunk 2077 at 4K with ultra settings showed the 4090 running cooler by 8 degrees on average, with lower fan speeds, and even better drops in hot spots and memory temperatures.
However, the CPU temperatures didn't improve much at first, so I experimented by flipping the case fans to a top intake and front exhaust setup, which dropped CPU temps by 10 degrees and eliminated thermal throttling.
This configuration was a game-changer, proving that directed airflow outperforms standard methods, even if it's tailored to specific hardware.
While there are limitations—it only works with this exact setup—the results highlight how much better targeted cooling can be compared to the industry's reliance on mesh and brute force airflow.
This experiment not only improved my PC's performance but also sparked thoughts about future designs that could make such optimizations more accessible.
This directed approach to airflow shows that with some creativity and tools, we can achieve cooling levels typically seen only on open test benches, even in enclosed cases.
Ultimately, this project demonstrated the power of applying automotive engineering principles to PCs, leaving me excited for what's possible next in custom cooling solutions.
Key Takeaways
Custom air ducts can significantly lower component temperatures by directing airflow precisely, as seen with an 8-degree drop for the GPU.
Accurate 3D modeling and printing are essential for effective designs, but they require careful measurements and adjustments for best results.
Standard PC airflow often leads to heat recirculation, and simple fan reconfiguration can make a big difference in overall system cooling.
While custom solutions offer superior performance, they are hardware-specific, highlighting the need for more versatile airflow designs in the industry.
